Ultris X20 Hyperspectral Imager | High-Resolution Spectral Imaging System

All Products › ULTRIS X20 Hyperspectral Video Camera

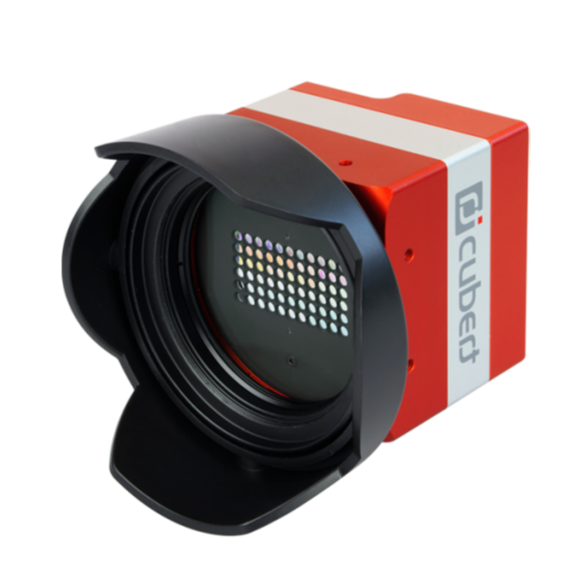

A CubeStar industrial camera with a black lens hood and lens, featuring a grille of colorful LED lights on the front, housed in a red and white casing.

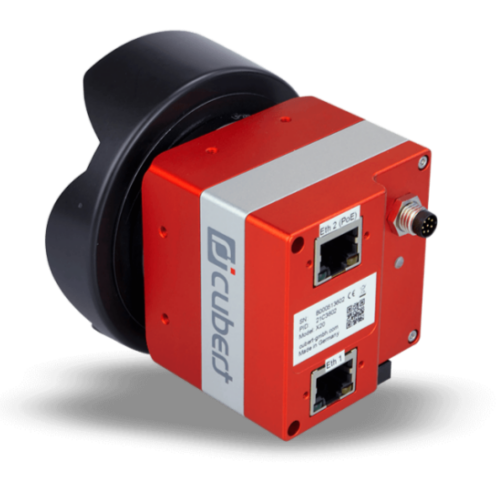

ULTRIS X20 Hyperspectral Video Camera

The World’s First UV-VIS-NIR Hyperspectral Video Camera

Real-Time Snapshot Hyperspectral Imaging from 350–1000 nm

A next-generation scientific-grade UV–VIS–NIR hyperspectral imaging camera enabling true real-time spectral video capture across a wide wavelength range of 350–1000 nm.

This system is designed for research, industrial inspection, defense, remote sensing, and environmental monitoring, delivering full spectral data acquisition in a single exposure.

Unlike traditional hyperspectral systems that rely on pushbroom scanning or mechanical rastering, this platform captures a complete hyperspectral data cube instantly, enabling true snapshot hyperspectral video imaging without motion artifacts, scan delays, or post-processing image stitching.

Specifications:

ULTRIS X20 SpecificationsTechnology
Light Field
Sensor
CMOSIS CMV20000
Readout
Global Shutter
Spatial Resolution
410 × 410 px
Wavelength Range
350–1000 nm
Spectral Bands
164
Spectral Sampling
4 nm
FWHM
10 nm (constant)
Spectral Data
164 × 168k (24.5M)
Bandpass Filter
Mosaic
Integration Time
0.1–1000 ms
Field of View
35°
Data Depth
12-bit
Max Frame Rate
8 Hz
Data Link
GigE
File Size
<55 MB
Weight
350 g
Dimensions
60 × 60 × 57 mm
Options

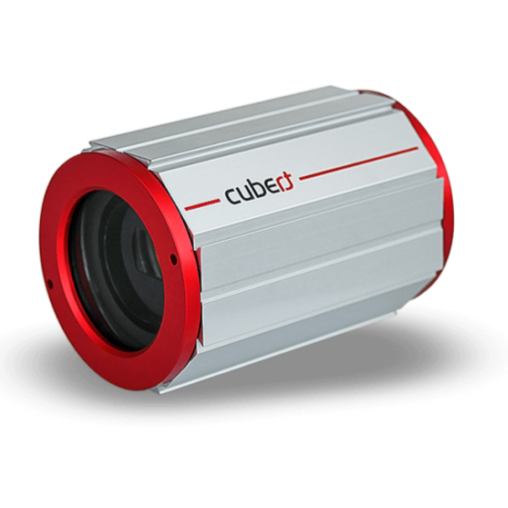

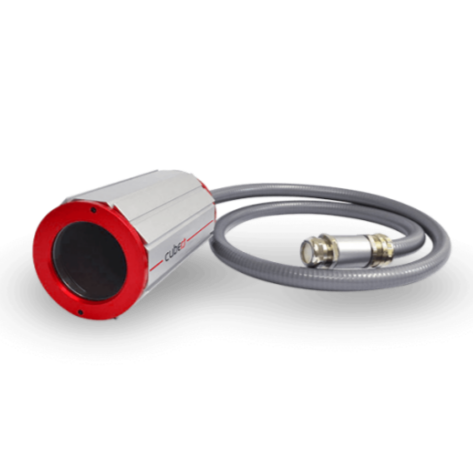

IP66 / IP68 Housing

A gradient background transitioning from dark black to purplish pink.

Spectral Coverage: 350–1000 nm (VIS–NIR)

Spatial & Spectral Resolution: 410 × 410 pixels, 164 bands (~168,000 spectra per snapshot)

Imaging Performance: True snapshot with global shutter, up to 8 Hz (no scanning)

Optical Quality: >90% transmission with OD4 straylight suppression

Spectral Consistency: Constant 10 nm FWHM across the full range

Form Factor & Protection: 350 g, 60 × 60 × 57 mm; optional IP66 and IP68 housings

Agricultural drone flying over a lush green farm field with evenly spaced crop rows.

Workers in a fruit processing plant sorting apples on conveyor belts, wearing protective hairnets and masks.

Aerial Mapping & Precision Agriculture

Close-up of industrial machinery with pipes, valves, and gauges outside under cloudy sky.

An aerial view of an open-pit quarry with terraced layers of earth and two water-filled pits at the bottom.

Its compact, lightweight design and real-time snapshot imaging make it perfect for drone-based aerial mapping and remote sensing, delivering precise data on vegetation health, water quality, and land surface conditions.

Gas Detection

Its compact design and real-time hyperspectral imaging make it ideal for gas detection and emissions monitoring, enabling rapid, contact-free identification of leaks, volatile compounds, and atmospheric pollutants in industrial and environmental applications.

Inspection for Food & Manufacturing

Its compact design and real-time hyperspectral imaging make it ideal for factory inspection and food quality monitoring, enabling rapid, contact-free analysis of freshness, contaminants, and product consistency.

Mining & Mineral Exploration

Its rugged design and real-time hyperspectral imaging make it ideal for mining and mineral exploration, enabling rapid, non-contact identification of mineral composition, ore grades, and surface alterations for efficient resource mapping and extraction planning.

Light Field Precision.
Instant Spectral Intelligence.

Powered by Cubert’s proprietary light field technology, the ULTRIS X20 captures real-time 3D hyperspectral data cubes with 410 × 410 spatial resolution and 164 equidistant bands across 350–1000 nm. Delivering consistent 10 nm FWHM performance without scanning or filter shifting, it produces clean, quantitative data ready for analysis. With Cuvis software support for reflectance, radiance, spectral indexing, and export to ENVI or TIFF, the ULTRIS X20 is a complete hyperspectral imaging solution for lab, field, and airborne applications.

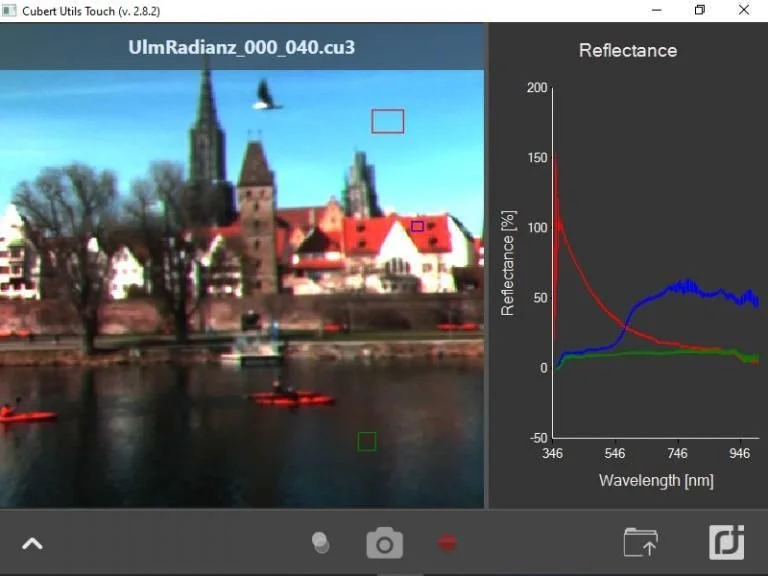

CUVIS Software

Built on proprietary light field architecture, this next-generation snapshot hyperspectral camera captures full 3D spectral data cubes instantly — without pushbroom scanning, mechanical movement, or filter shifting. High spatial and spectral resolution combined with consistent FWHM performance delivers clean, quantitative UV–VIS–NIR data ready for real-time analysis. Integrated hyperspectral software enables reflectance and radiance processing, spectral indexing, classification, and export to scientific formats such as ENVI and TIFF, making it an ideal solution for research, industrial inspection, defense, environmental monitoring, and airborne remote sensing applications.
