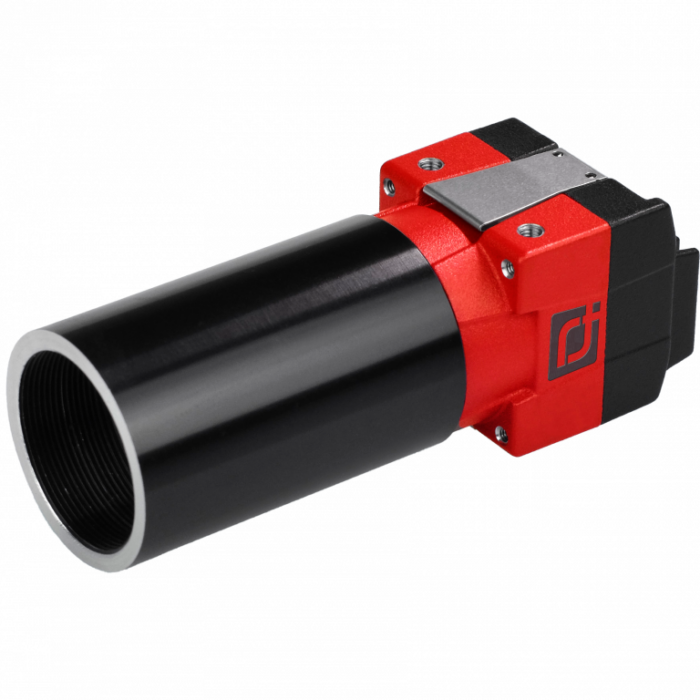

ULTRIS SWIR1 Hyperspectral Camera
Hyperspectral snapshot SWIR camera with video rates
Based on our hyperspectral light field camera technology, the ULTRIS SWIR 1 offers a versatile imaging solution with its broad wavelength range (980-1650 nm) within the Short-Wave Infrared region. The C-Mount compatibility, supported by the integrated Relay Lens Adapter, enables seamless integration of various optics setups.
Specifications:
Spectral Coverage: 980–1650 nm (SWIR) for advanced material analysis beyond visible and NIR
Spatial & Spectral Resolution: 200 × 200 pixels, 38 bands for detailed hyperspectral snapshots
Imaging Performance: True snapshot capture with global shutter, up to 80 Hz for dynamic scenes
Optical Versatility: C-Mount compatibility supports a wide range of interchangeable lenses
Data Connectivity: USB 3.0 interface for fast and efficient data transfer
Form Factor & Reliability: Compact 30 × 30 × 85 mm, 140 g; robust design for lab, industrial, or UAV integration
Short-Wave Infrared (SWIR) Applications
1000–1100 nm: Optimized for precise soil and crop moisture mapping, supporting agricultural monitoring and quality assessment.
1100–1300 nm: Ideal for plastics inspection and sorting, as well as moisture analysis in food products, ensuring accurate quality control.
1300–1500 nm: Sensitive to carbon-hydrogen bonds, enabling advanced chemical analysis and detailed molecular composition studies.
1500–1700 nm: Perfect for water content evaluation, from rapid assessment in agricultural goods to comprehensive analysis of liquids and other materials.
High-Speed Snapshot SWIR Hyperspectral Camera with Video Rates
The ULTRIS SWIR 1 is a hyperspectral snapshot SWIR camera engineered for high-speed imaging and real-time video-rate data capture. Built on advanced hyperspectral light field technology, it delivers broad spectral coverage from 980–1650 nm within the short-wave infrared (SWIR) range, supporting precise material identification, inspection, and scientific analysis. Integrated C-mount compatibility through a Relay Lens Adapter allows flexible lens changes and seamless integration into diverse optical systems. With frame rates up to 80 Hz and a compact 30 × 30 × 85 mm design, the ULTRIS SWIR 1 is ideal for space-limited laboratory environments and demanding field applications.
CUVIS Software
Built on proprietary light field architecture, this next-generation snapshot hyperspectral camera captures full 3D spectral data cubes instantly — without pushbroom scanning, mechanical movement, or filter shifting. High spatial and spectral resolution combined with consistent FWHM performance delivers clean, quantitative UV–VIS–NIR data ready for real-time analysis. Integrated hyperspectral software enables reflectance and radiance processing, spectral indexing, classification, and export to scientific formats such as ENVI and TIFF, making it an ideal solution for research, industrial inspection, defense, environmental monitoring, and airborne remote sensing applications.
