ULTRIS 5 Hyperspectral Video Camera
All Products › ULTRIS 5
The ULTRIS 5 expands the family of award-winning light field snapshot hyperspectral cameras, integrating a 5-megapixel sensor into a compact 30 × 30 × 50 mm design. It captures complete hyperspectral data cubes at 250 × 250 spatial resolution with 51 spectral bands at 15 Hz across the 450–850 nm wavelength range.
This ultra-compact hyperspectral imaging system is ideal for integration into tight industrial process environments. High-resolution snapshot data cubes enable precise capture of rapidly changing spatial and temporal events, supporting advanced decision-making algorithms for automated inspection, real-time process control, and robotic guidance.
The ULTRIS 5 is available in configurations for endoscopic and microscopic imaging applications, with custom wavelength ranges offered to meet specialized hyperspectral sensing requirements.
60 × 60 × 99.4 mm (HFR)
Specifications:
Affordable Performance: Cost-effective hyperspectral imaging without sacrificing spectral accuracy or reliability

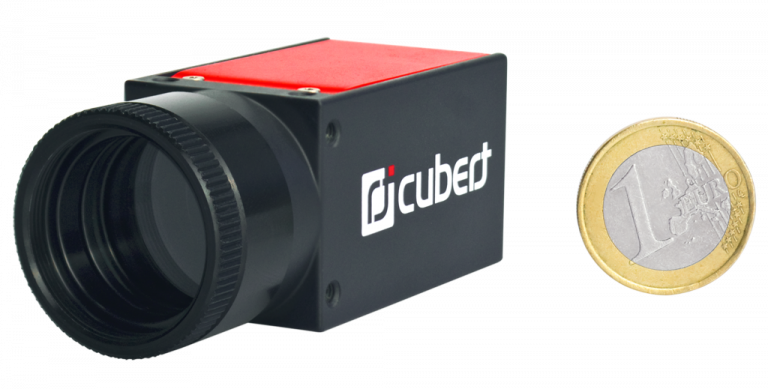

Compact & Lightweight: 29 × 29 × 65 mm, 126 g for easy integration into lab, industrial, and OEM systems
High-Resolution Sensor: 5 MP camera for detailed spectral imaging and precise classification
Spectral Discrimination: Advanced light field technology for accurate material and surface identification
High-Speed HFR Option: Up to 75 Hz via 10 GigE for time-critical industrial and biomedical workflows
Flexible Integration: C-Mount compatibility with relay lens adapter for versatile optics selection
Industrial Protection: IP40 standard housing or IP66 rugged enclosure for demanding environments
Its compact, lightweight design and real-time snapshot imaging make it perfect for drone-based aerial mapping and remote sensing, delivering precise data on vegetation health, water quality, and land surface conditions.
Aerial Mapping & Remote Sensing
Its compact design and real-time hyperspectral imaging make it ideal for factory inspection and food quality monitoring, enabling rapid, contact-free analysis of freshness, contaminants, and product consistency.
Inspection for Food & Manufacturing
Its lightweight design and real-time hyperspectral imaging make it ideal for marine and ocean applications, providing rapid, contact-free analysis of water quality, algal blooms, and coastal ecosystem health.
Marine & Ocean Monitoring
Its compact, high-resolution hyperspectral imaging enables rapid, non-invasive analysis in biomedical and life science applications, supporting tissue diagnostics, cellular studies, and real-time spectral monitoring.
Biomedical & Life Science Imaging

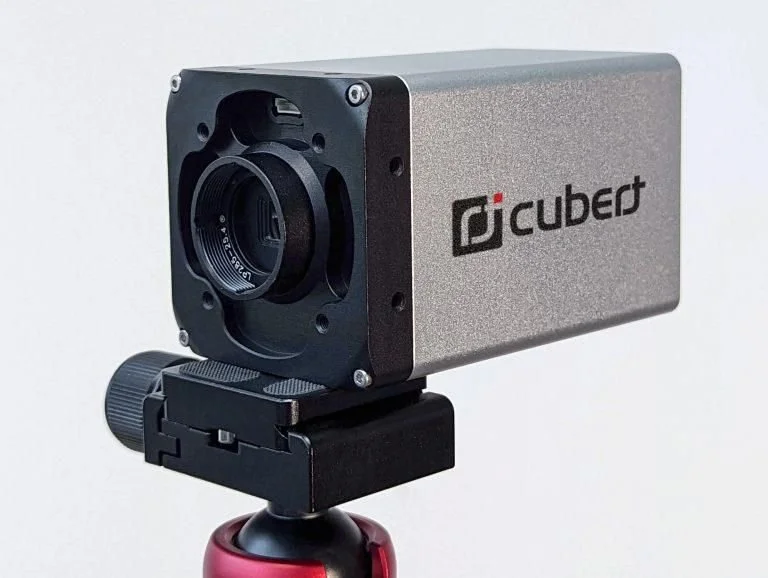

The ULTRIS 5 HFR is the high-frame-rate 10 GigE version of the standard ULTRIS 5, designed for demanding industrial and biomedical applications requiring rapid hyperspectral data capture. Maintaining a resolution of 290 × 275 pixels with 51 spectral bands across 450–850 nm, it leverages the full performance of the integrated Sony IMX250 sensor. With up to 75 Hz frame rates over 10 Gigabit Ethernet while preserving 12-bit data depth, the HFR model delivers high-speed, high-precision hyperspectral imaging for time-critical inspection, sorting, and analysis workflows.
High-Speed Hyperspectral Imaging
with 10 GigE
CUVIS Software
Built on proprietary light field architecture, this next-generation snapshot hyperspectral camera captures full 3D spectral data cubes instantly — without pushbroom scanning, mechanical movement, or filter shifting. High spatial and spectral resolution combined with consistent FWHM performance delivers clean, quantitative UV–VIS–NIR data ready for real-time analysis. Integrated hyperspectral software enables reflectance and radiance processing, spectral indexing, classification, and export to scientific formats such as ENVI and TIFF, making it an ideal solution for research, industrial inspection, defense, environmental monitoring, and airborne remote sensing applications.
Available in Two Different Housings
Weighing less than 130 g, this is the lightest-ever hyperspectral video camera

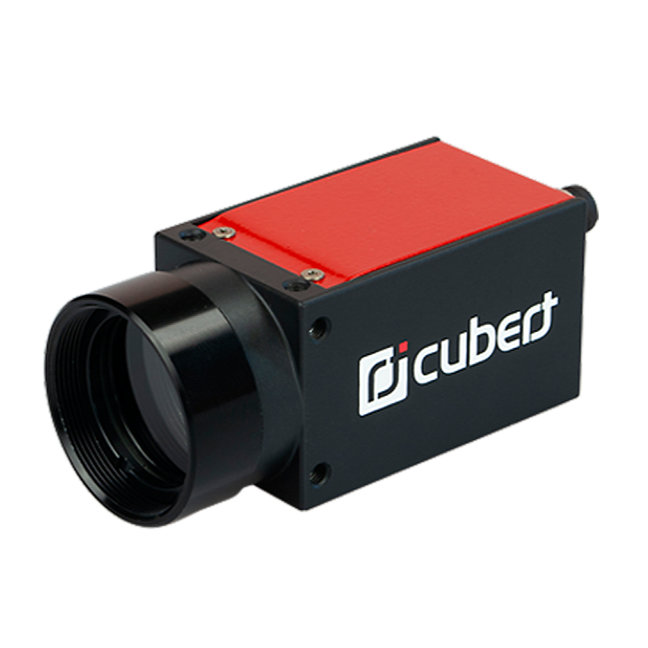

Standard Lightweight Housing (IP40)

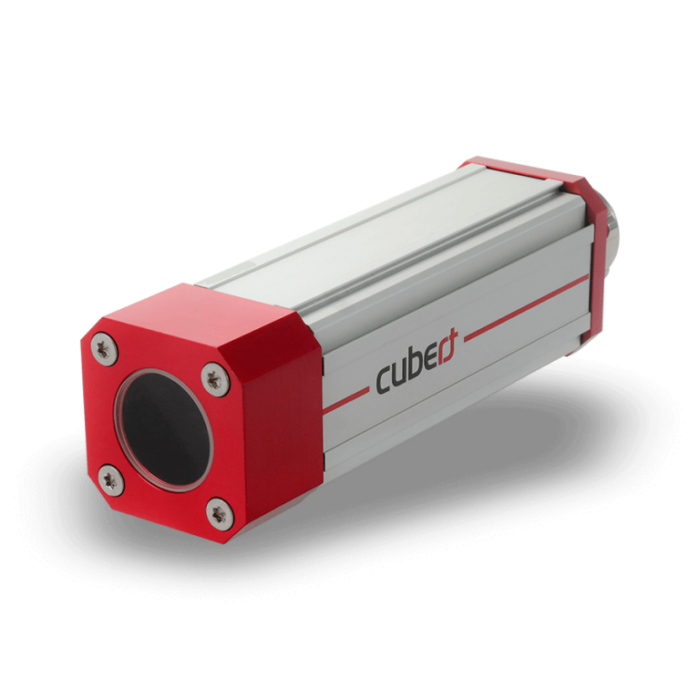

Industrial Housing (IP66)
Even for harsh environments, the ULTRIS 5 is fully prepared. The industrial IP66 housing protects the camera from splash water, haze, and dust.
