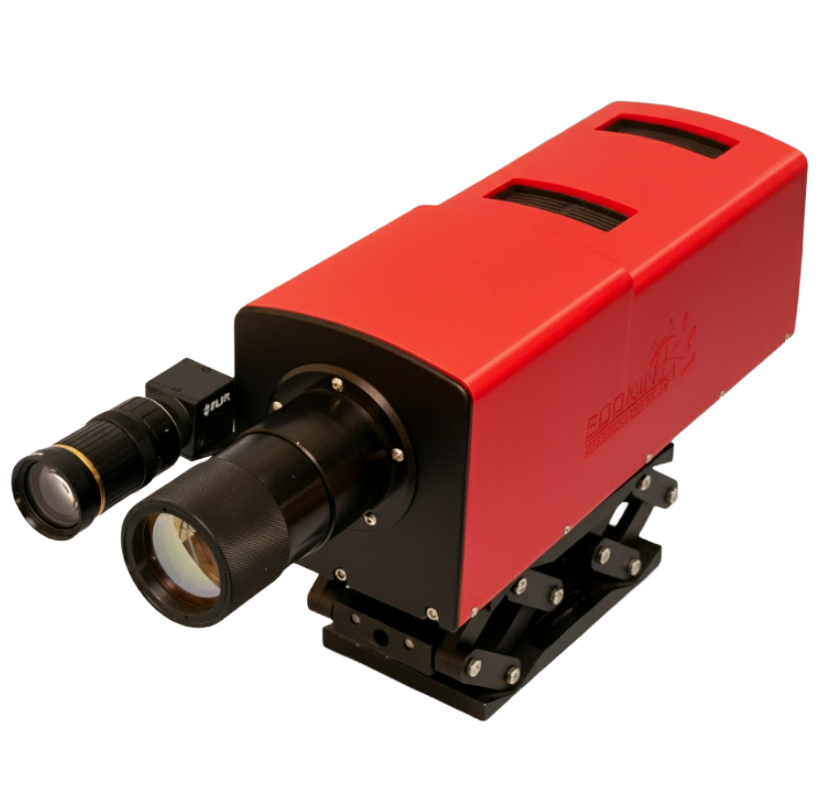

MWIR-60 Video Rate Hyperspectral Imager

All Products › MWIR-60

The MWIR-60 Video Rate Hyperspectral Imager delivers real-time midwave infrared hyperspectral imaging for fast, high-resolution scene analysis.

Designed by Bodkin Design & Engineering, the MWIR-60 combines video-rate performance with advanced spectral sensing to enable precise material and chemical identification in dynamic, time-critical environments. Its integrated imaging architecture produces rich, actionable data without the delays of traditional hyperspectral systems, making it ideal for applications in defense, environmental monitoring, industrial inspection, and scientific research.

MWIR-60 Technical Specifications
Data Cube
41 × 33 spatial × 120 spectral
Data Rate
60 cubes/sec
Spectral Range
3 – 5 μm
Spectral Resolution
34 nm/bin (avg)
Field of View
6.7° × 5.4° & 4.8° × 3.6°
Dimensions
4” W × 5” H × 21” L
Weight
10 lbs
Power
14 W
Imaging Method
Snapshot hyperspectral (no scanning)
Technology
HyperPixel Array (HPA)
Motion Artifacts
Eliminated (no moving parts)
Frame Mode
Single-frame data cube capture
Video Capability
Real-time hyperspectral video
Visible Aiming Camera
Included
Moving Platform Use
Optimized

Specifications:

High-Speed Imaging: Video-rate midwave hyperspectral capture for real-time dynamic scene analysis.

Spectral Capability: High-resolution hyperspectral data enabling detailed material and chemical identification.

System Performance: Fast, reliable data acquisition designed for time-critical applications and seamless operation.

Rugged, Compact Design: Portable, environmentally hardened system for lab, industrial, and field integration.
