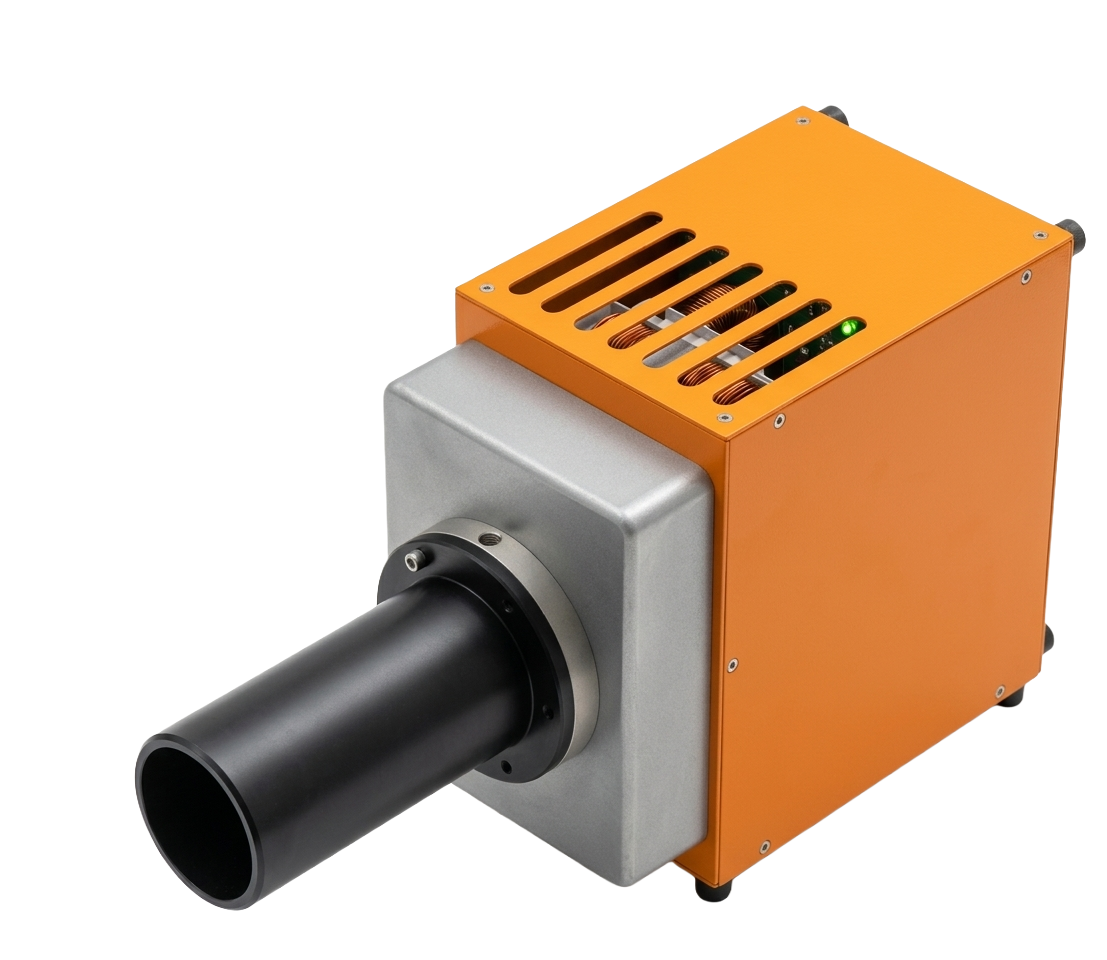

MRDT-X Differential Blackbody

Engineered for next-generation IR testing, this thermo-electric blackbody delivers high signal-to-noise performance with a wide temperature range from -40°C to 100°C and ultra-stable control (±0.01°C accuracy). Featuring a large 3” aperture, fast slew rates, and a removable bar target for MRΔT measurement, it supports both MWIR and LWIR calibration. With frost-free, windowless operation and USB-controlled automation, it’s an ideal solution for demanding laboratory and defense-grade infrared imaging applications.

Precision MRΔT Blackbody for High-Performance Infrared Imager Calibration

MRΔT Blackbody Technical SpecificationsSlew Rate
0.08 °C/s
Stability
0.005 °C rms
Emissivity
>0.95
Temperature Range
−40 °C to 100 °C
Setpoint Resolution
±0.01 °C
Differential Accuracy
±0.01 °C
Dimensions
12.5” × 8” × 22”
Aperture Size
3” diameter
Weight
35 lbs
Power Input
120 / 240 VAC
Power Consumption
200 W
Interface
USB (Computer Controlled)
Operating Environment
−20 °C to 60 °C
Calibration Type
Single-point & MRΔT measurement
Control Modes
Setup & repeat, automated thermal profiling, master-slave operation
Spectral Range
MWIR & LWIR
Additional Features
Windowless frost-free operation, thermo-electric heating & cooling, fast settling (<15 min), interchangeable bar targets, high signal-to-noise output

Specifications:

High-Precision MRΔT Measurement: Differential blackbody designed for accurate Minimum Resolvable Temperature Difference (MRΔT) testing of infrared imagers across MWIR and LWIR bands.

Wide Temperature Range: Operates from -40 °C to 100 °C with ±0.01 °C differential accuracy and fine setpoint control for precise thermal characterization.

Fast Thermal Response: Thermo-electric drive enables rapid slew rates (~0.08 °C/s) with stable set-point achievement in under 15 minutes.

Differential Target Capability: Removable and interchangeable bar targets allow configuration for both single-point calibration and MRΔT measurement.

Flexible Operation: Multiple control modes including USB computer interface, preset startup, and automated thermal profiling with master-slave capability.

Rugged, Windowless Design: Frost-free, windowless operation ensures high signal-to-noise performance with a 3” aperture supporting large sensors in demanding environments.
