IRCOL Test Bench Collimator

All Products › IRCOL Test Bench Collimator

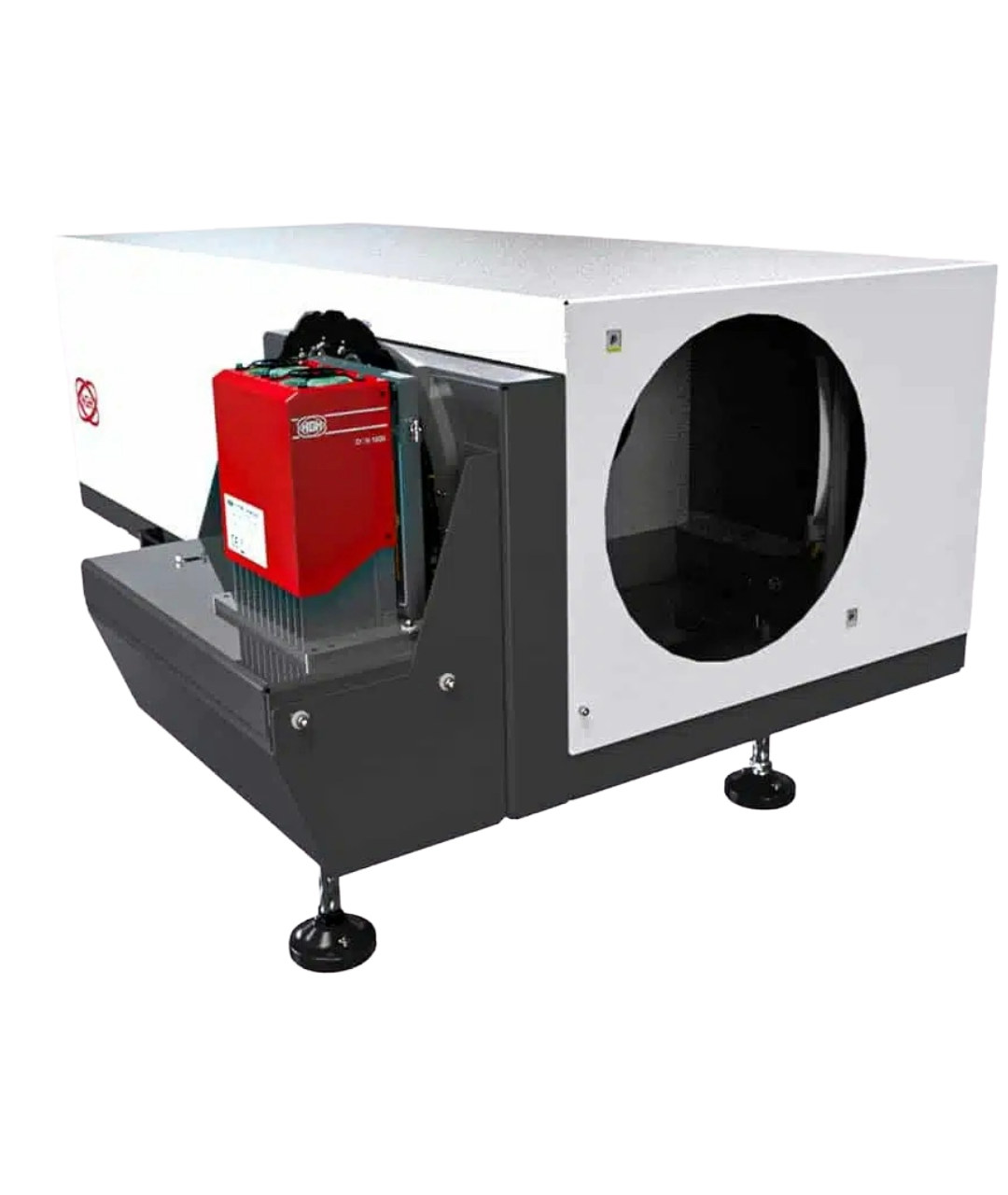

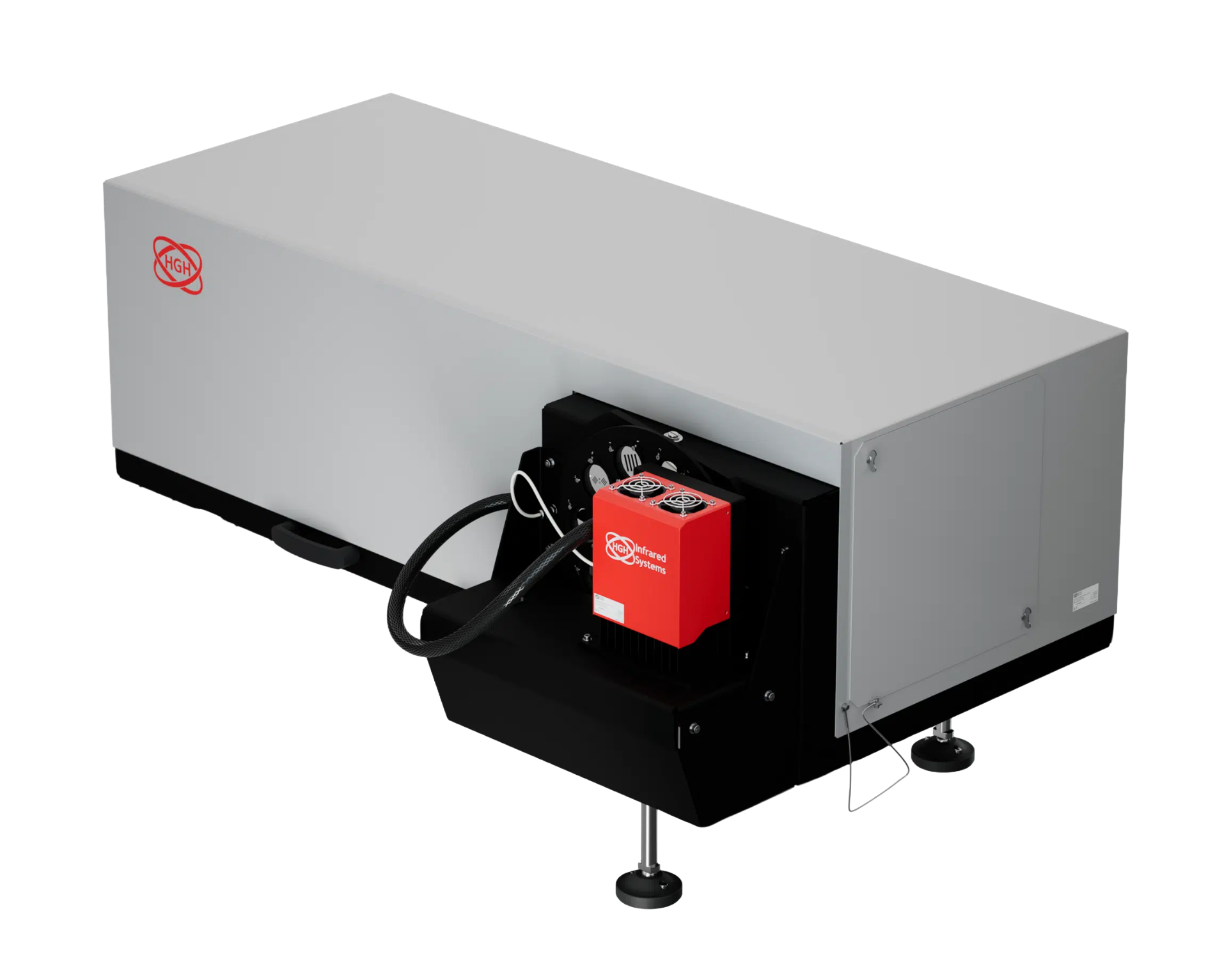

IRCOL Test Bench is a multi-functional optical collimator system for electro-optical testing and performance validation. Designed for visible, NIR, and SWIR imaging systems, night vision devices, thermal cameras, laser rangefinders, and multi-axis sighting systems, it delivers precise, repeatable measurement and calibration.

Featuring a high-performance mirror-based optical collimator, IRCOL supports modular configurations and a wide range of accessories for flexible test setups. Ideal for advanced EO/IR characterization, it provides accurate, reliable system validation in demanding laboratory and field environments.

Key Capabilities

Visible to Shortwave Infrared (VIS–SWIR) Cameras: Characterization of noise performance, spatial resolution, MRC, distortion, field of view, optical-to-mechanical axis alignment, and system latency.

Thermal Imaging Systems: Measurement of NETD, MTF curves, MRTD curves, and TOD curves, along with range performance estimation and optical-to-mechanical axis alignment verification.

Multi-Sensor Frame Systems: Precision validation of optical axis alignment and compatibility with large-aperture imaging configurations.

Laser Rangefinders & Designators: Assessment of beam alignment, divergence, ranging accuracy, distance measurement performance, and laser pulse energy characterization.

Night Vision Devices: Evaluation of gain, resolution, infinity focus, eyepiece zeroing and range, goggle axis parallelism, sensitivity metrics, and detection of optical spot defects.

Specifications


Optical Test Bench Configurations Specs

      Specification
      150/750
      150/1000
      300/1500
      300/4000
      400/2500
      600/6000
      250/1500S
      400/2500S

      Primary Value (mm)
      750
      1000
      1500
      4000
      2500
      6000
      1533
      2500

      Secondary Parameter
      5.2
      6.9
      5.3
      14.0
      6.3
      10.0
      5.7
      6.3

      Configuration Positions
      6 positions
      10 positions
      6 positions
      12 positions
      10 positions
      N/A
      N/A
      N/A

      Operating Temperature Range
      +15°C to +35°C
      -54°C to +71°C

      Optical Quality
      Better than λ/3 peak-to-peak and λ/20 RMS (standard temperature conditions)
      Better than λ/4 RMS (all temperature conditions)

Specification	150/750	150/1000	300/1500	300/4000	400/2500	600/6000	250/1500S	400/2500S
Primary Value (mm)	750	1000	1500	4000	2500	6000	1533	2500
Secondary Parameter	5.2	6.9	5.3	14.0	6.3	10.0	5.7	6.3
Configuration Positions	6 positions	10 positions	6 positions	12 positions	10 positions	N/A	N/A	N/A
Operating Temperature Range	+15°C to +35°C	-54°C to +71°C
Optical Quality	Better than λ/3 peak-to-peak and λ/20 RMS (standard temperature conditions)	Better than λ/4 RMS (all temperature conditions)

Its stable, uniform output and precise temperature control make it ideal for calibrating infrared cameras and spectrometers, ensuring accurate and reliable thermal measurements.

Calibration of Thermal Sensors

Delivers precise, uniform thermal radiation to characterize material emissivity, enabling accurate analysis of heat absorption and emission properties.

Material Emissivity Testing

Designed for rugged environments, it supports sensor validation on aircraft, satellites, and defense systems, providing consistent reference temperatures across all operating conditions.

Aerospace & Defense Testing

Compact and reliable, it provides a consistent reference for infrared cameras and remote sensing instruments, enhancing the accuracy of environmental and industrial thermal measurements.

Infrared Imaging & Remote Sensing

Downloads

IRCOL Collimator Datasheet
