ECN100 Series Extended Area Blackbody
All Products › ECN100 Series Blackbody

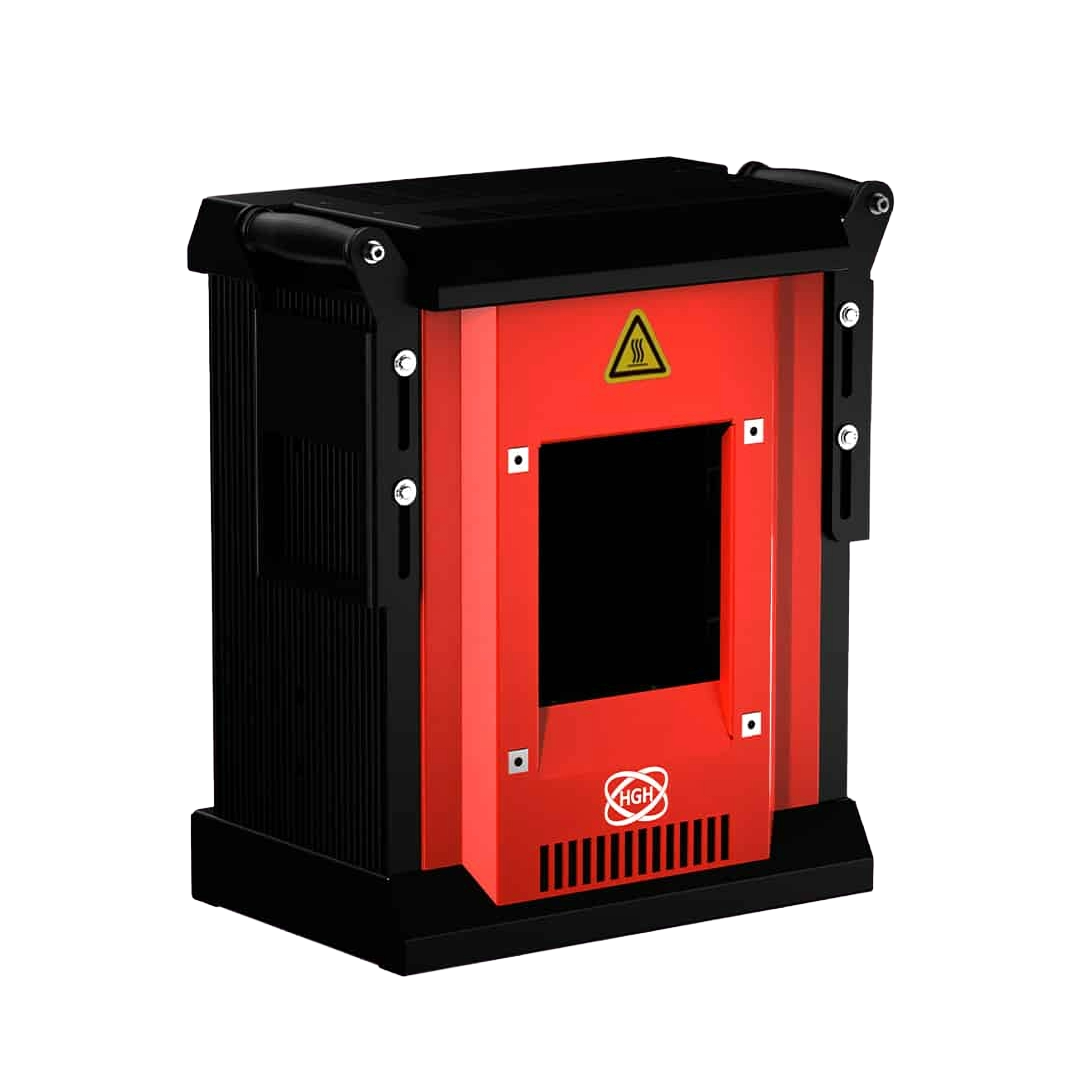

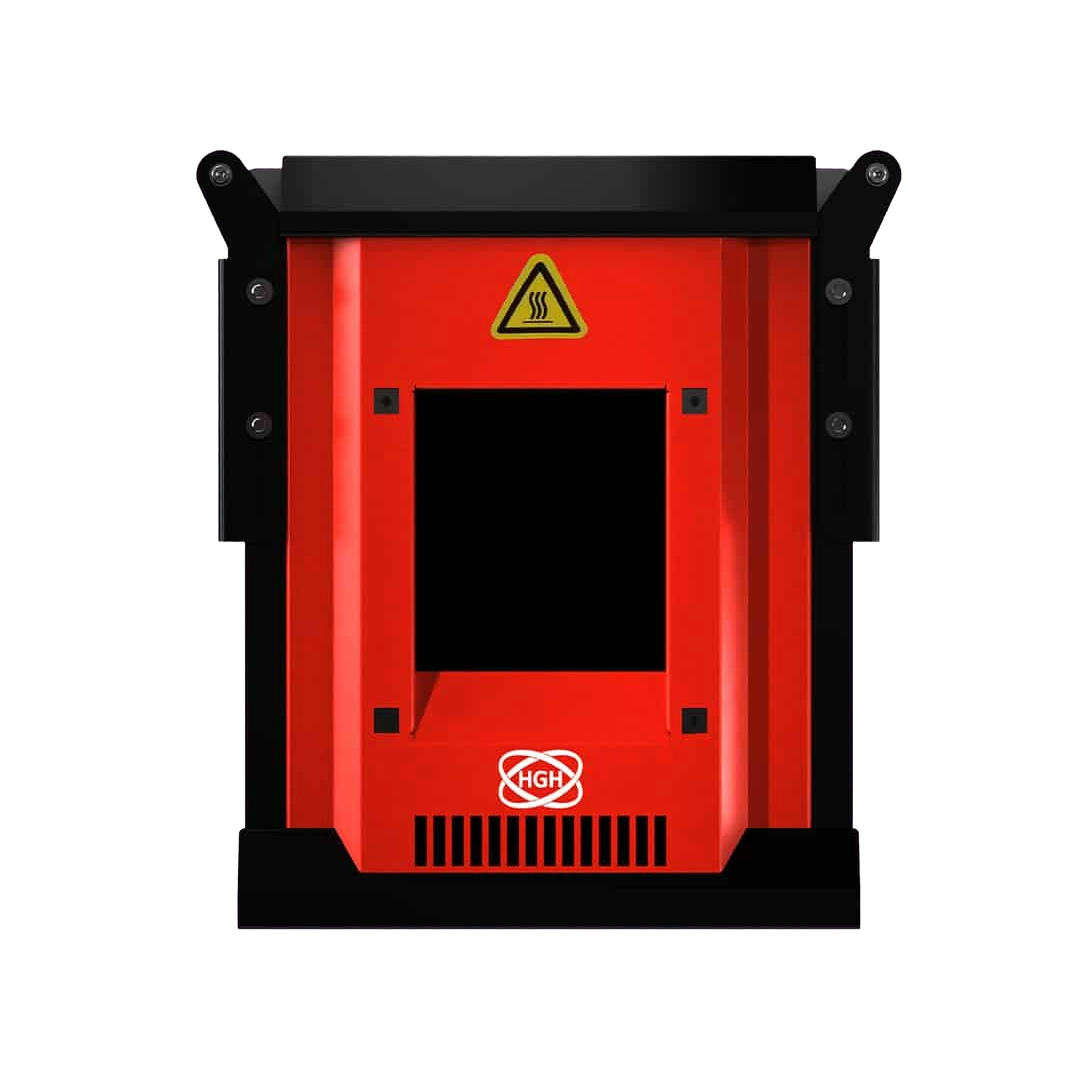

ECN100 blackbody sources are extended area and high temperature reference sources up to 600°C that cover a wide range of wavelengths, from near IR to far IR. These sources provide infrared radiation with unparalleled uniformity and stability, making them ideal for testing and calibrating NIR to LWIR sensors with the highest accuracy.
The emissive head’s robust structure ensures reliable operation in both lab and field conditions. Additionally, external mechanical parts are kept below 50°C, ensuring safe operation.
The ECN100 series delivers high performance in both uniformity and temperature regulation for testing and calibration of infrared sensors. With their wide temperature range and superior uniformity, these blackbodies are essential for a range of industrial and scientific applications.
High-Performance Calibration for a Wide Range of Sensors
The ECN100 blackbody series provides a high-precision reference standard for calibrating thermal imagers, thermographic cameras, and other infrared sensors across a wide spectral range from near-infrared (NIR) to long-wave infrared (LWIR). Featuring large, uniform emissive areas and advanced non-uniformity correction, the ECN100 ensures accurate, consistent measurements over wide fields of view, making it ideal for aerospace, automotive, defense, and research applications. Each unit is delivered with a radiometric calibration certificate traceable to international primary standards, guaranteeing reliable performance, while its built-in compensation simplifies use by aligning the displayed temperature with the radiated temperature.
Specifications
| Specification | ECN100 H6 | ECN100 H12 | ECN100 N20 |
|---|---|---|---|
| Emissive Area | 150 × 150 mm² | 300 × 300 mm² | 500 × 500 mm² |
| Temperature Range | 50°C to 600°C | 50°C to 550°C | 50°C to 300°C |
| Emissive Area Uniformity | 0.75°C at 300°C | 2°C at 300°C | 3.5°C at 300°C |
| Emissivity / Apparent Emissivity | Minimum 0.93 over 3–5 µm / 1.00 Minimum 0.96 over 8–14 µm / 1.00 |
Minimum 0.93 over 3–5 µm / 1.00 Minimum 0.96 over 8–14 µm / 1.00 |
0.98 ± 0.02 / 1.00 |
| Stability | 0.02°C | 0.02°C | 0.05°C |
| Temperature Measurement Accuracy | ±0.5°C | ±0.5°C | ±0.5°C |
| Display Resolution | 0.01°C | 0.01°C | 0.01°C |
| Warm-up Time (from ambient to Tmax) | 60 min | 75 min | 75 min |
| Head Dimensions (W × H × D) | 423 × 467 × 247 mm | 694 × 820 × 300 mm | 567 × 677 × 340 mm |
| Head Weight | 20 kg | 40 kg | 55 kg |
| Electronic Unit Size | 2U × 19’’ | ||
| Electronic Unit Weight | 6.5 kg | ||
| Max Power Consumption | 2500 W / 6000 W / 5000 W | ||
| Power Supply | 200–260 VAC, 1 ph., 50/60 Hz | ||
| Remote Control | Ethernet, RS-232, IEEE 488 | ||
| Operating Temperature Range (Head) | -10°C to +70°C | ||
Its stable, uniform output and precise temperature control make it ideal for calibrating infrared cameras and spectrometers, ensuring accurate and reliable thermal measurements.
Calibration of Thermal Sensors
Delivers precise, uniform thermal radiation to characterize material emissivity, enabling accurate analysis of heat absorption and emission properties.
Material Emissivity Testing
Designed for rugged environments, it supports sensor validation on aircraft, satellites, and defense systems, providing consistent reference temperatures across all operating conditions.
Aerospace & Defense Testing
Compact and reliable, it provides a consistent reference for infrared cameras and remote sensing instruments, enhancing the accuracy of environmental and industrial thermal measurements.
Infrared Imaging & Remote Sensing
Downloads
ECN Series Product Datasheet
