DCN1000 Blackbody
All Products › DCN1000 Blackbody

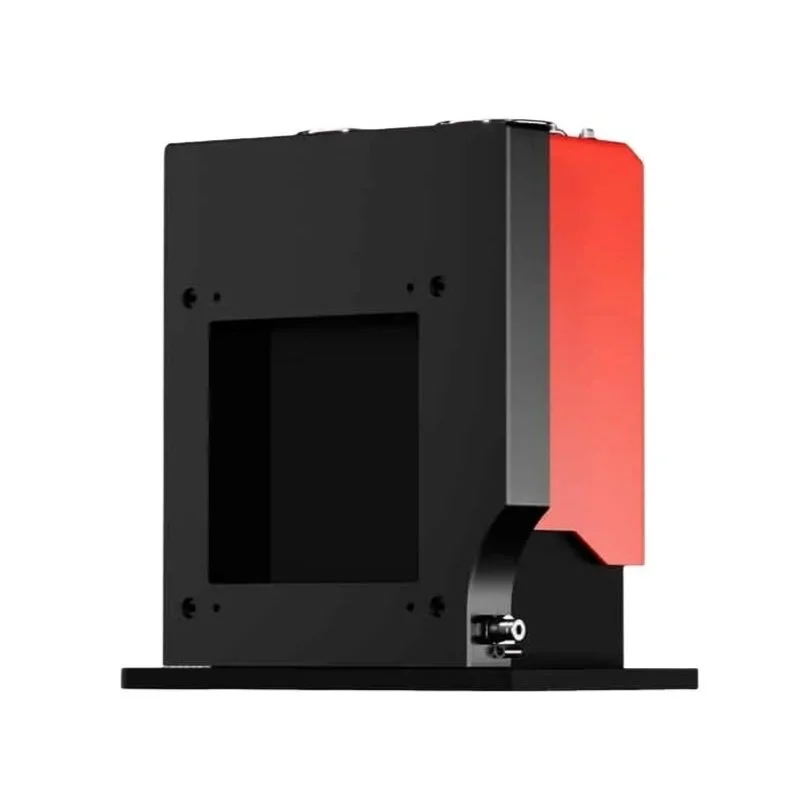

DCN1000 Blackbody sources provide low-temperature, high-performance infrared reference solutions engineered for unmatched measurement accuracy. With decades of expertise in infrared technology, these advanced calibration tools are trusted by laboratories, universities, manufacturers, and maintenance centers worldwide. The DCN1000 series is ideal for qualifying IR sensors, including high-resolution thermal imagers, advanced thermographic cameras, and precision radiometers.
The DCN1000 series delivers exceptional stability and industry-leading temperature regulation speed. Featuring both absolute and differential operation modes, it is perfect for infrared sensor calibration and precise thermal imager range assessment, ensuring reliable and repeatable results for critical applications.
BLACKBODY SOURCES – HIGH-PERFORMANCE INFRARED CALIBRATION

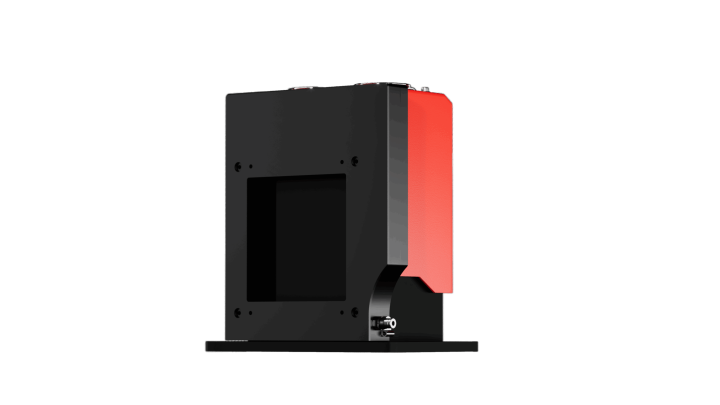

The best-selling air-cooled DCN1000 is a compact, easy-to-use infrared reference source for demanding thermal testing. Ideal for:
High-resolution thermal cameras
Precision thermographic cameras
Long-range thermal imagers
Key Features:
Emissive area up to 300 mm × 300 mm
Temperature range: -15 °C to +200 °C
High thermal uniformity and emissivity
Quiet, compact design
Climatic chamber compatible (-55 °C to +85 °C)
Reliable, accurate calibration for laboratories, manufacturers, and field testing.
High-Precision Air-Cooled DCN1000 (Up to 200°C)

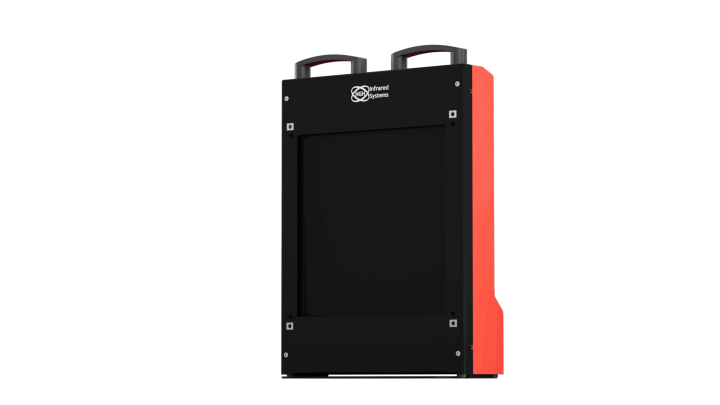

The fluid-cooled DCN1000 provides precise infrared calibration at extremely low temperatures with high thermal stability.
Key Features:
Emissive area up to 300 mm × 300 mm
Temperature range: -40 °C to +150 °C
Excellent thermal uniformity
Fanless, silent operation
Compact, efficient design
Perfect for reliable low-temperature calibration of IR sensors and thermal imagers.
Low-Temperature Fluid-Cooled DCN1000 (-40°C to 150°C)
Specifications
| DCN1000 H2 | DCN1000 H4 | DCN1000 N7 | DCN1000 N12 | |
|---|---|---|---|---|
| Emissive area | 50 × 50 mm | 100 × 100 mm | 180 × 180 mm | 300 × 300 mm |
|
Temperature range (at 20°C ambient) – Absolute – Differential |
-15°C to +150°C (option: -15°C to +200°C) -35°C to +130°C |
-5°C to +150°C (option: -5°C to +180°C) -25°C to +130°C |
-5°C to +150°C -25°C to +130°C |
|
|
Thermal uniformity at ambient ±5°C Thermal uniformity at 50°C |
0.01°C 0.1°C |
0.01°C 0.2°C |
||
| Emissivity / Apparent emissivity after compensation | 0.98 ± 0.02 / 1.00 (option: 0.99 ± 0.01 / 1.00) | |||
| Stability | 0.5 mK over [0–65°C], 2 mK outside | |||
| Temperature measurement accuracy | Differential: ±0.01°C Absolute: ±0.03°C | |||
| Display resolution | 0.0001°C (actual temperature and set point display) | |||
| Slew rate | >0.5°C/s heating ; >0.25°C/s cooling | >0.5°C/s heating ; >0.2°C/s cooling | ||
| Stabilization time @ 2 mK | 30 seconds | |||
| Remote control | Ethernet, RS232 and IEEE488 interface | |||
| Power supply | 90–260 VAC, 1 ph., 50/60 Hz | |||
| Operating ambient temperature | Control unit: +5°C to +45°C – Head: -20°C to +70°C (option: -55°C to +85°C) | |||
| Max. power consumption | 800 W | 1600 W | ||
| Head dimensions W × H × D | 115 × 198 × 111 mm | 192 × 215 × 120 mm | 235 × 257 × 202 mm | 355 × 377 × 201 mm |
| Head weight | 2 kg | 5 kg | 12.5 kg | 27 kg |
| Electronic unit size | 2U × 19” | |||
| Electronic unit weight | 6.5 kg | 8.5 kg | ||
| Double head option | YES | NO | ||
Its stable, uniform output and precise temperature control make it ideal for calibrating infrared cameras and spectrometers, ensuring accurate and reliable thermal measurements.
Calibration of Thermal Sensors
Delivers precise, uniform thermal radiation to characterize material emissivity, enabling accurate analysis of heat absorption and emission properties.
Material Emissivity Testing
Designed for rugged environments, it supports sensor validation on aircraft, satellites, and defense systems, providing consistent reference temperatures across all operating conditions.
Aerospace & Defense Testing
Compact and reliable, it provides a consistent reference for infrared cameras and remote sensing instruments, enhancing the accuracy of environmental and industrial thermal measurements.
Infrared Imaging & Remote Sensing
DCN1000 Blackbody Sources – Precision Infrared Calibration
The DCN1000 series provides fast, reliable calibration for infrared sensors, from high-resolution thermal cameras to long-range imagers. With exceptional thermal uniformity, high emissivity, and advanced temperature control, the air-cooled model handles low-temperature testing, while the fluid-cooled version reaches extreme lows—making DCN1000 the versatile choice for aerospace, automotive, defense, and research applications.
