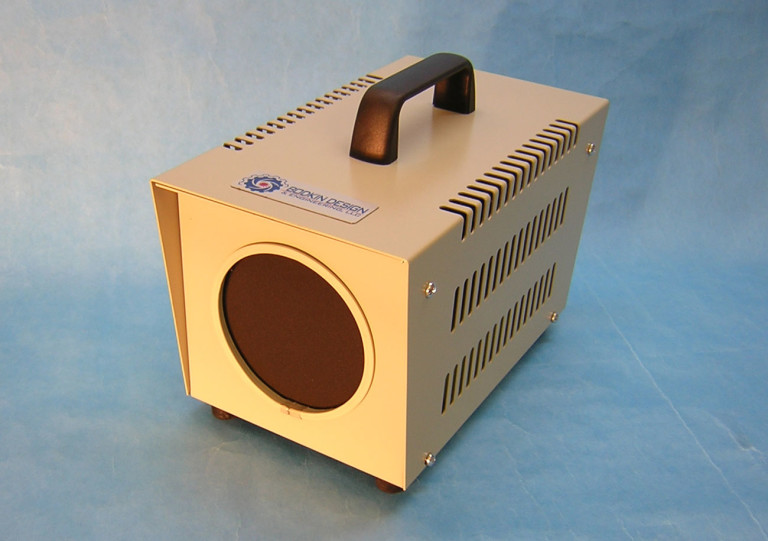

BB-100 Single Point Blackbody

The BB-100 Single Point Blackbody has a 4” Diameter Aperture for Large Sensors and Long Stand-off Operation.

  • Thermo-electrically driven blackbody provides precise infrared emission over the MWIR and LWIR spectral bands.
  • Flat-plate blackbody ideal for single point calibration of imagers, pyrometers and single detectors.
  • Digital Interface to custom PC set-point control.

Features

  • 4” Diameter Aperture for Large Sensors and Long Stand-off Operation
  • Thermo-Electric Drive Provides Both Hot and Cold Set-Point.
  • Faster Slew Rates Than Resistive Heater Devices Devices.
  • Computer Controlled – USB Interface. Multiple Operating Modes
    1. Virtual Control Panel
    2. Setup and Forget, Returns to Same Setting on Every Start-up
    3. Slaved to Master Control to Run Thermal Profile Routines
  • Achieves Set-point Temperature in < ~15 Min.

System Specifications

  • Slew rate: 0.08°C/s
  • Stability: ±0.01°C p-p (0.005°C rms)
  • Emissivity: >0.95
  • Max/Min Temperature: 100°C / 0°C
  • Set Point Resolution: 0.01 °C
  • Accuracy: 0.1 °C
  • Dimensions: 6” x 6” x 9.5”
  • Face dimensions: 4” dia.
  • Weight: 8 0 lbs
  • Environment: 60 °C to -20 °C
  • Power In: 120/240 VAC, 150 W Max

High Slew Rate Rapid Settling Time

Thermo-electrically driven blackbody provides precise infrared emission over the MWIR and LWIR spectral bands.

Flat-plate blackbody ideal for single point calibration of imagers, pyrometers and single detectors.

Digital Interface to custom PC set-point control application via RS-232 connection.

Rapid blackbody systems and customized components available

BB-100 Blackbody

Product Datasheet available for download:

Download ( 73.01 KB )
